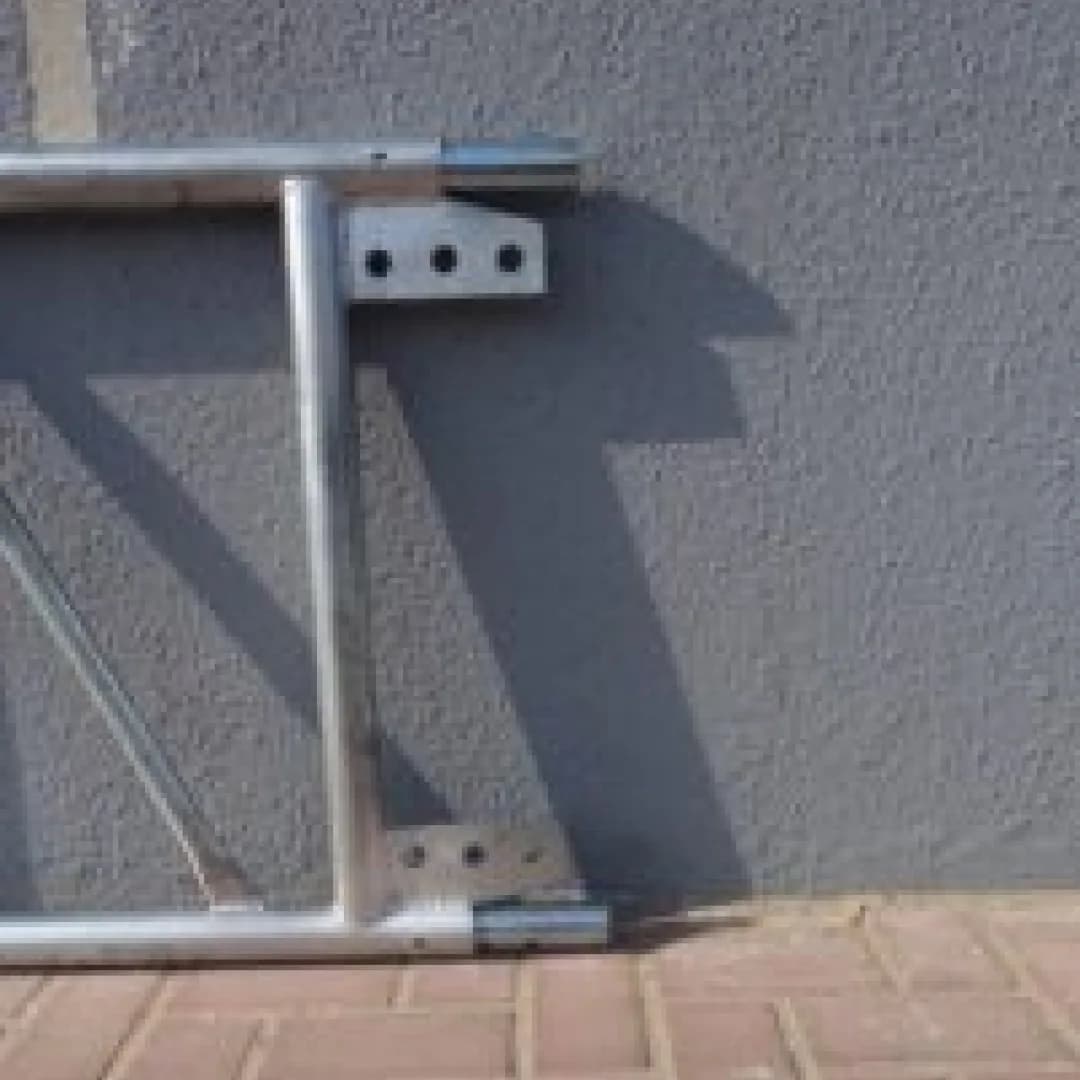

Unit Beam

Technical Specification

Unit Beam Standard Length: (2.0, 3.0, 4.0, 5.0 & 6.0 Mtr)

Non – standard length made to bulk order

Overall Width: 658 mm

Centre to centre width: 610 mm (2′)

Steel Bottom & Top chorts Tube Profile: 48.3*4 mm wall Thickness

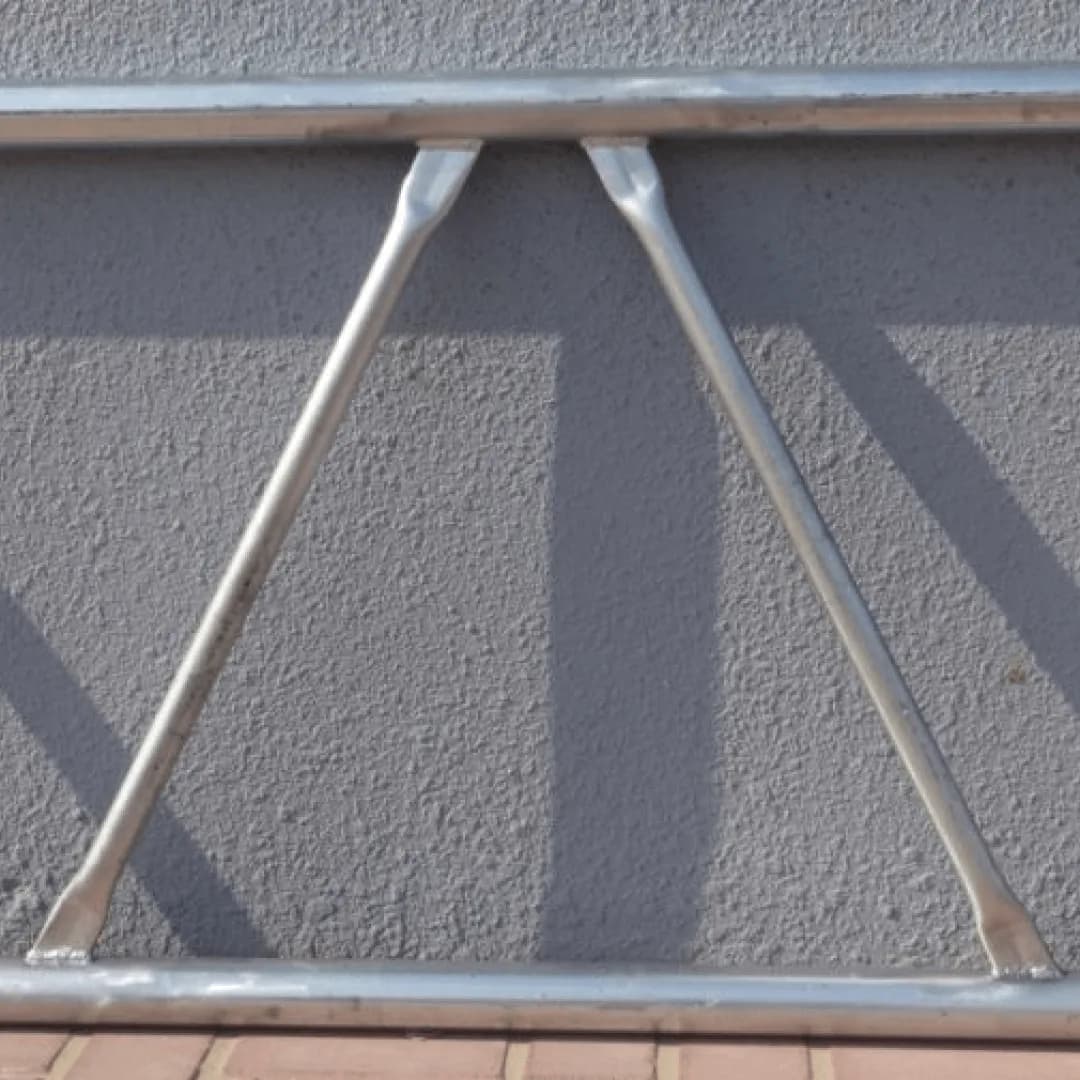

Steel Diagonal Profile: 27.0*3.2 mm Wall Thickness

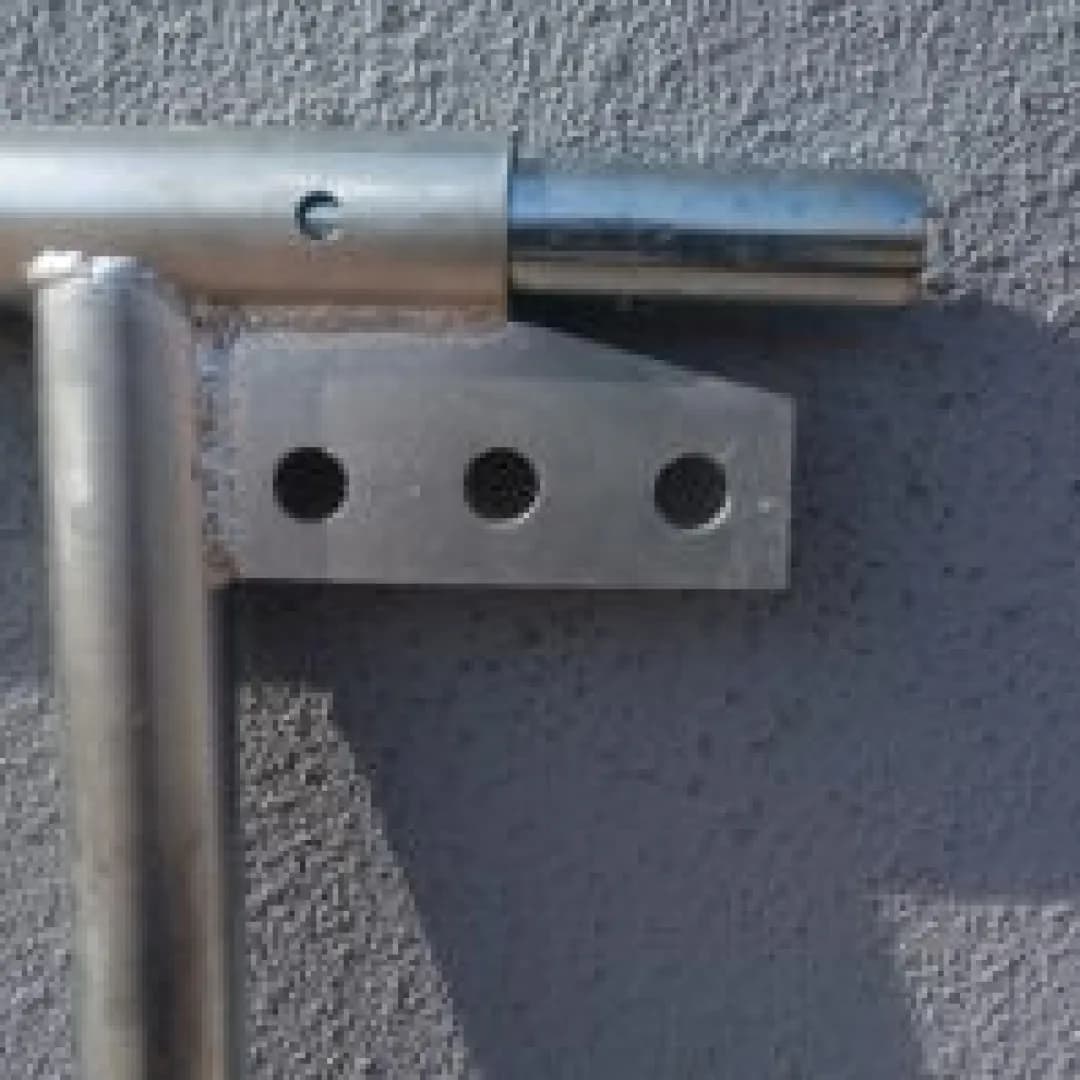

Spigot Tube Profile: 38.0*4 mm wall Thickness

All Joints are MIG Welded (welder qualified to BS EN 287 & EN 9606)
