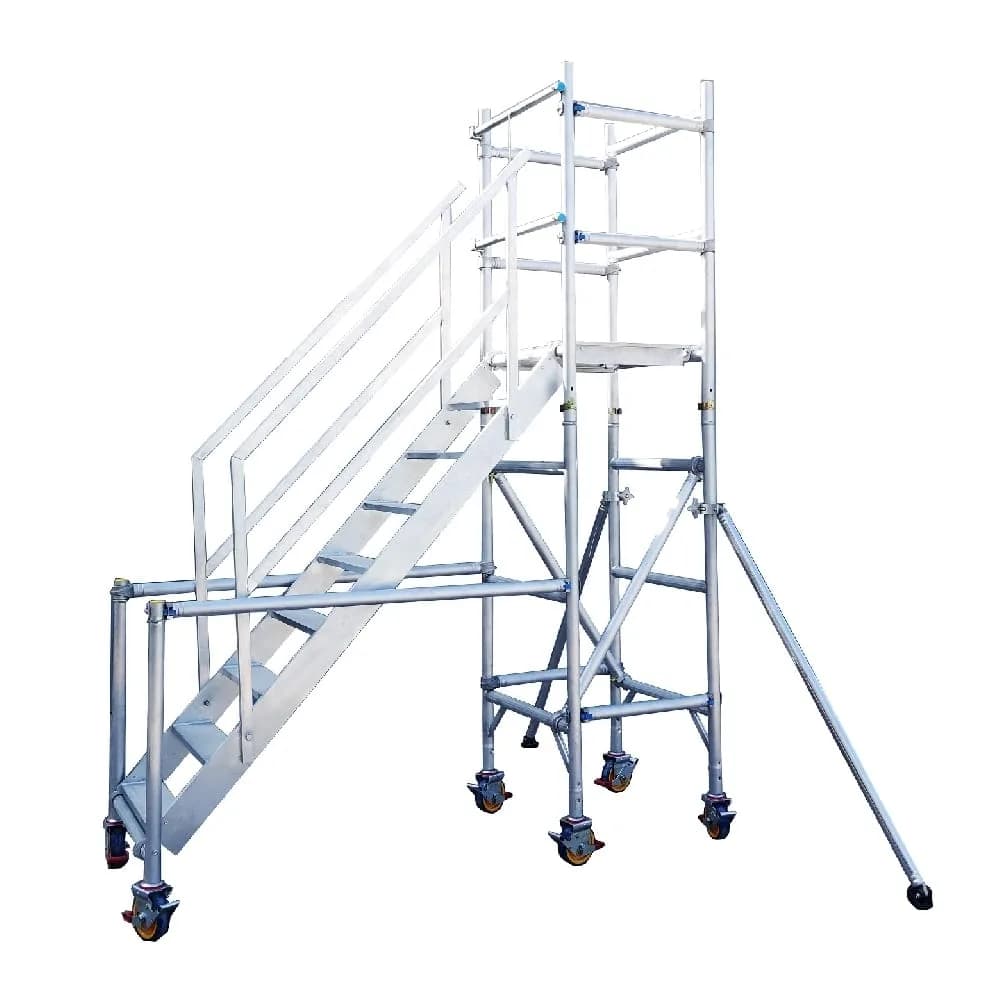

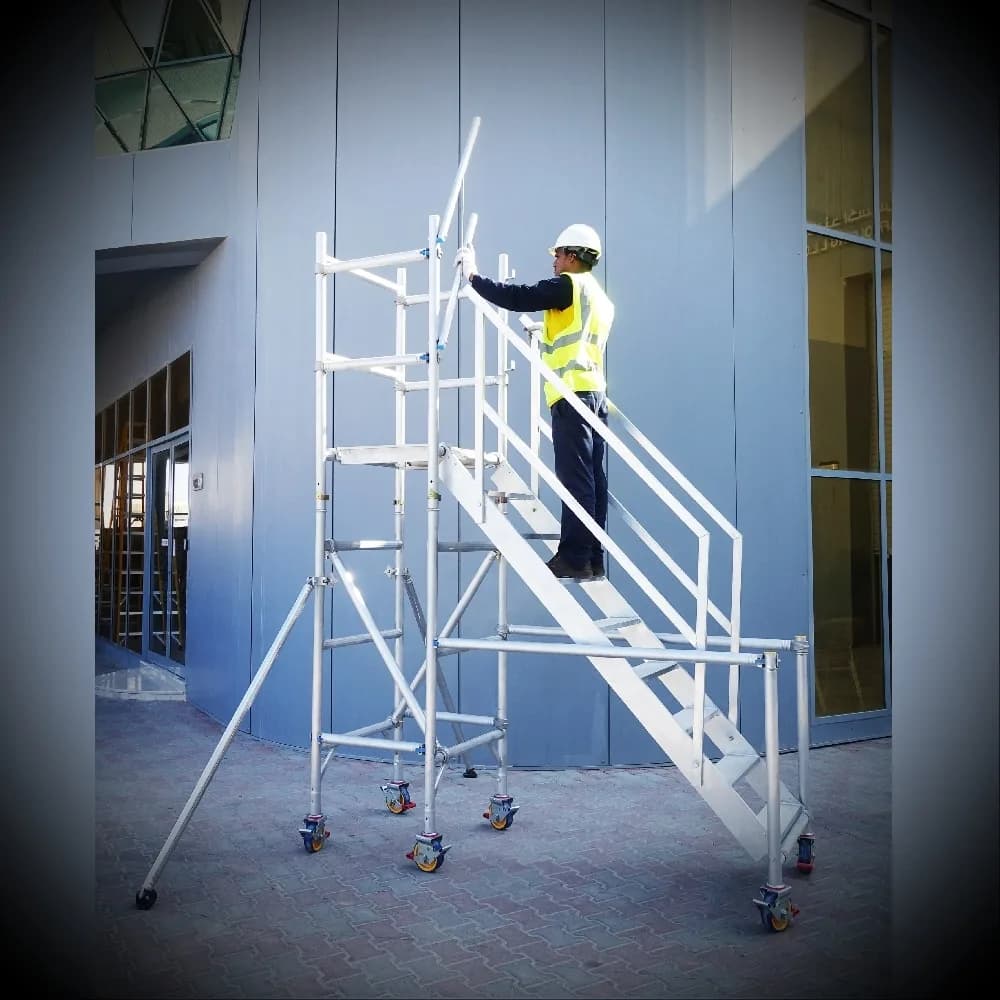

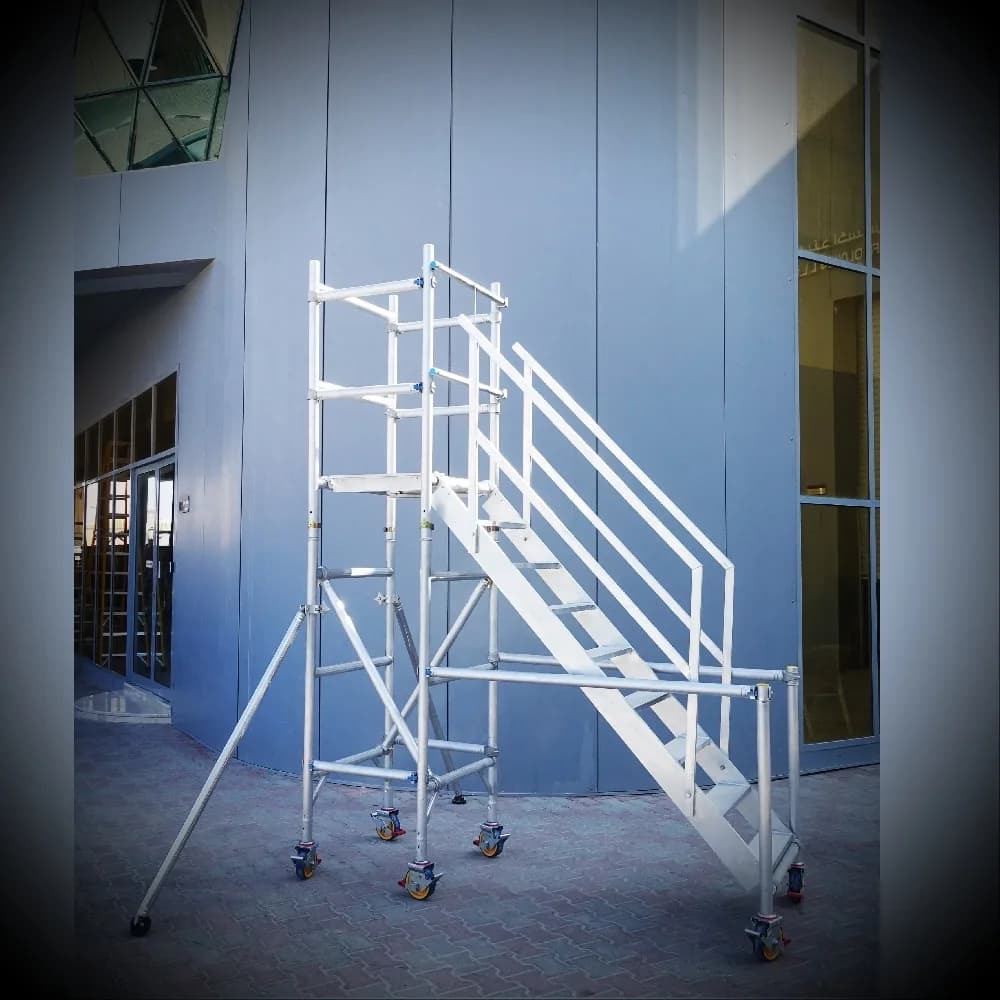

ASCEND Foldable Podium Tower (80 cm platform with 2.0 m height) is a newly modified version featuring integrated Stairway Steps for safer and more efficient access at low working heights.
- Compact design fits through standard doorways with ease
- Equipped with a self-latching safety gate and fully enclosed platform
- Foldable podium tower compliant with Work at Height Regulations for maximum safety and mobility
A welded aluminum alloy (6061-T6) frame with rung gap of 50 cm and vertical tube thickness of 2.5 mm.
Frame Connection:
Spigot joint, designed through cold forming, is an integral part of vertical tube (thickness of 2.5 mm) and is used to connect the frames to give maximum strength amid the whole podium structure.
TIG Welding:
Produces a high quality of weld-finish with precise control of heat variables (via amperage controls), leave no slag or splatter, keeping weld and surrounding metal as clean as possible.
Standard Platform:
Working platform, made of water-resistant and anti-slip wood, has aluminum frames all around for the perfect fitting.
Safety Mechanism:
The wind-lock safety system is to hold the structure from accidental lift. And, it is designed with self-latching safety gate and fully-enclosed secure platform to comply with The Work at Height Regulations.
Podium Stabilizer:
The stabilizer is designed to use at the two corners of podium. It has rubberized anti-slip pad to empower safety against sliding off.
Castor Wheel:
Available in 15 cm with adjustable-leg up to 60 cm and constitutes dual-pedal braking for easy operation.
