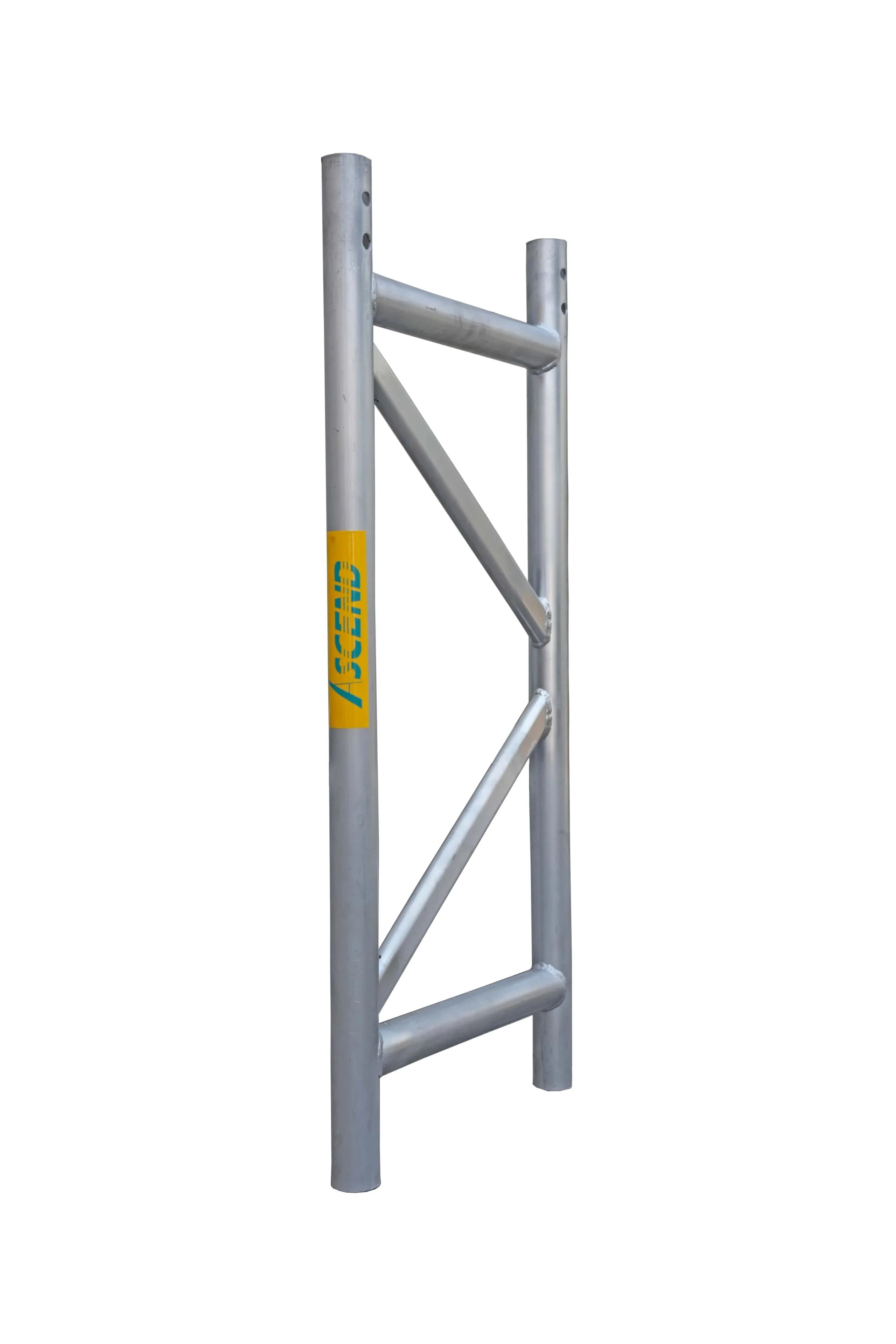

Lattice Beam (750 mm)

Technical Specification

Lattice Beam(750 mm) Standard Length: (1.25, 2.25, 3.25, 4.25, 5.25 & 6.25 Mtr)

Non – standard length made to bulk order

Overall Width: 750 mm

Alu Scaff Tube Profile: 48.0*4 mm wall Thickness

Alu Diagonal Profile: 40.0*21.0*3.5 mm Wall Thickness

Grade: 6082 (T6)

All Joints are TIG Welded (welder qualified to BS EN 9606-2:2004)

Designed as per BS 8118 & BS EN 1999-1-1 Standard
