ALUMINUM TOWER – SINGLE WIDTH (80 CM X 178 CM) PLATFORM 8.0 M

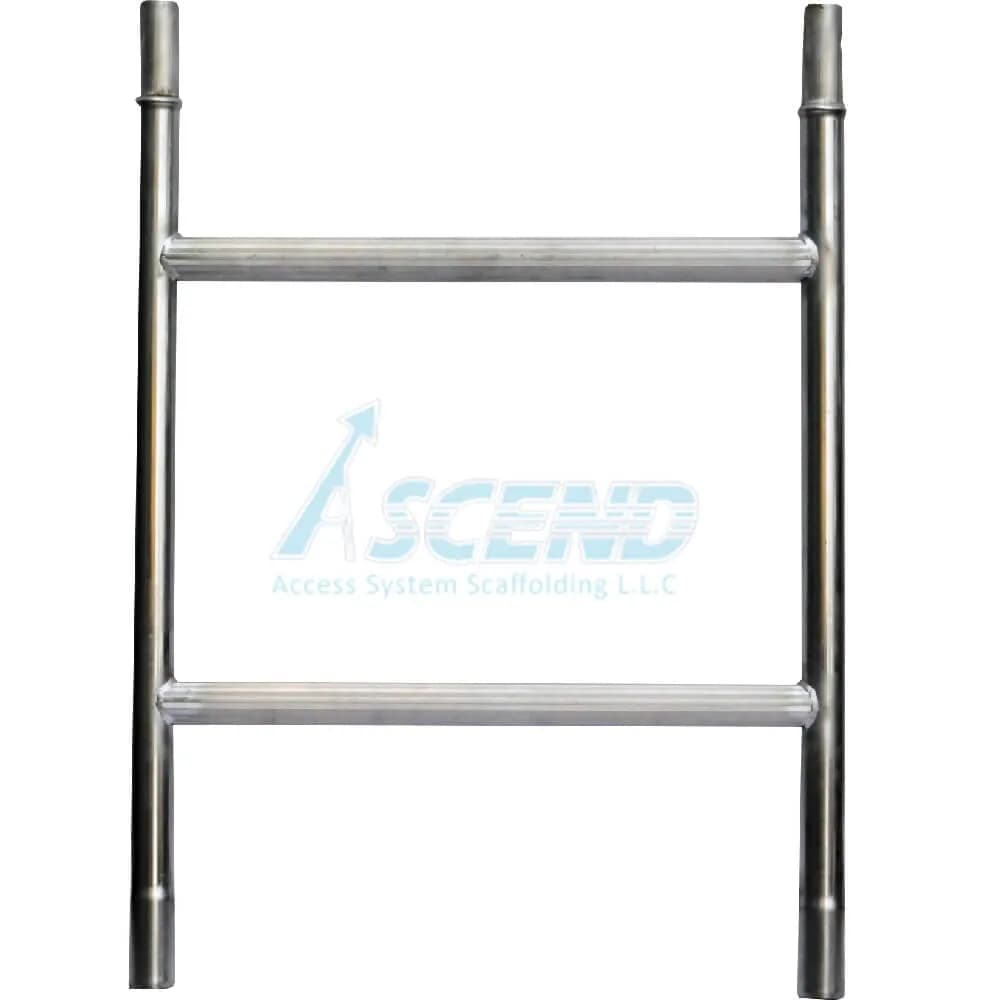

Span Frame:
A welded aluminum alloy (6061-T6) frame with rung gap of 50 cm and vertical tube thickness of 2.5 mm.

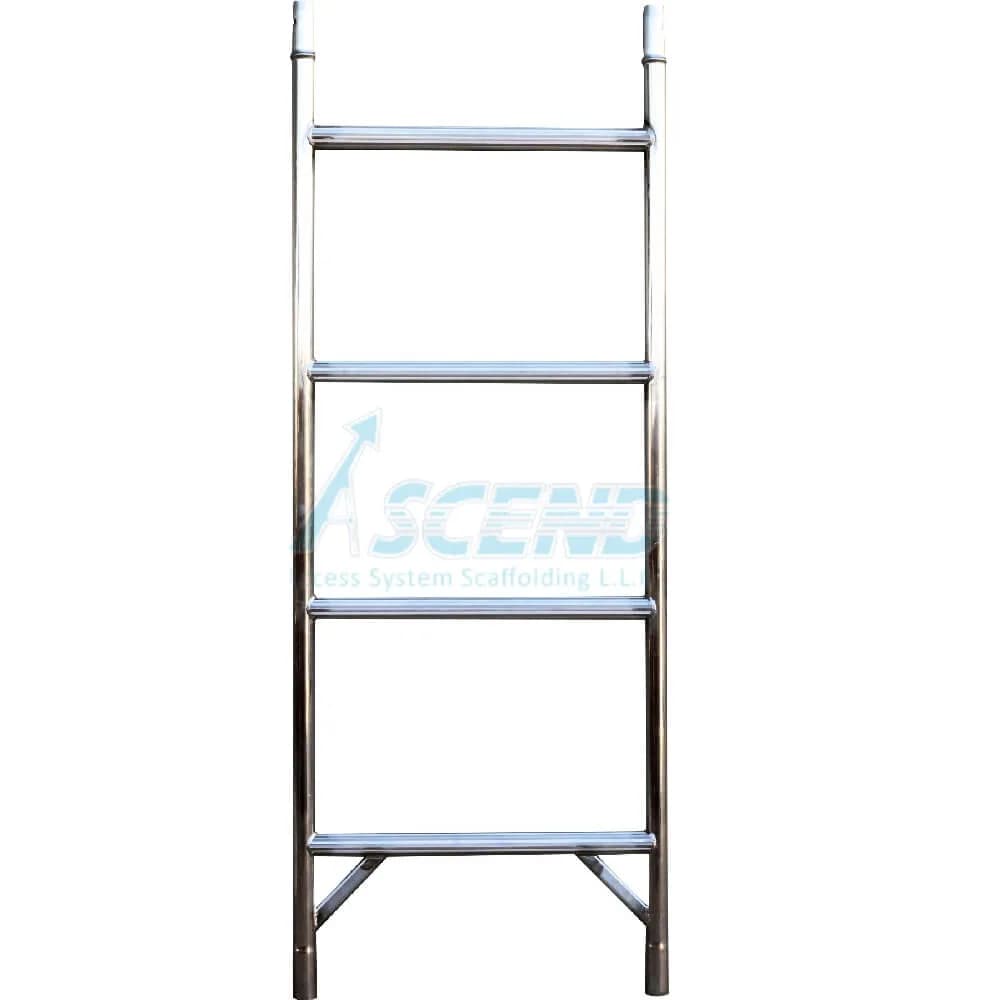

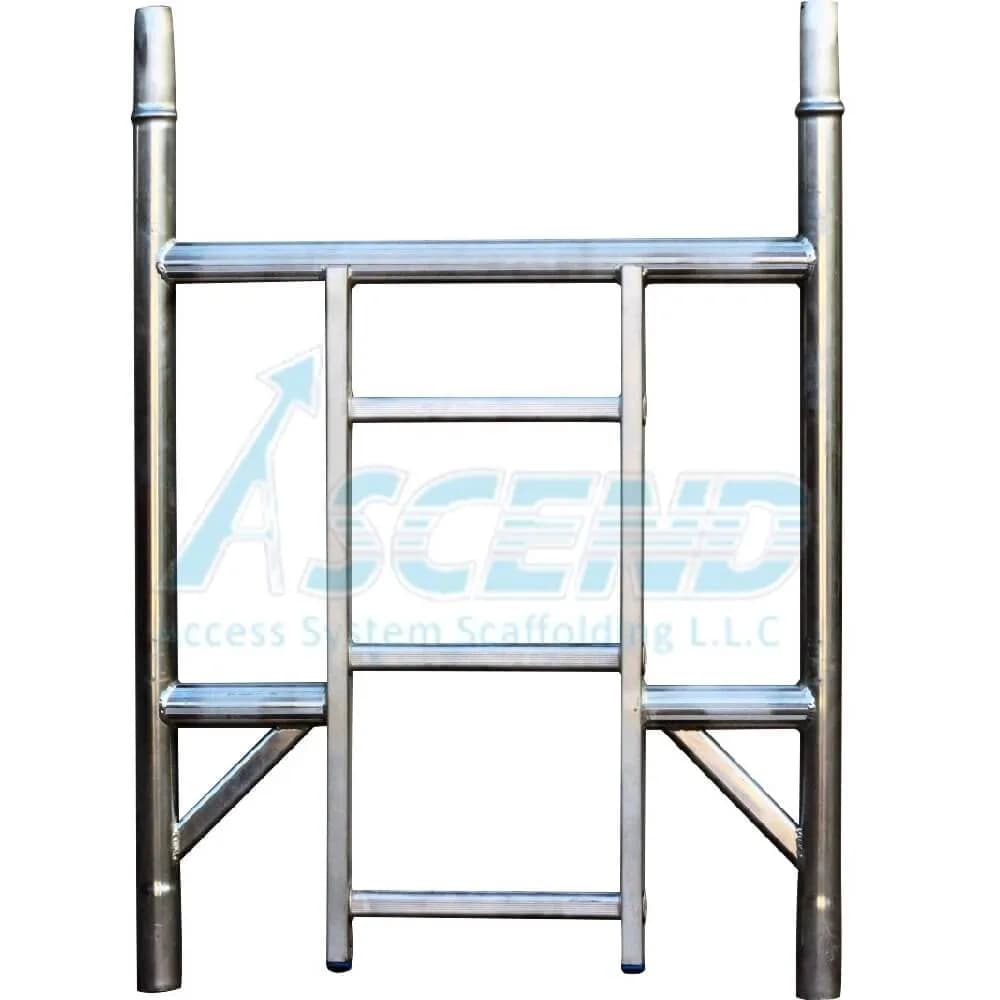

Ladder Frame:
Integrated seven-step industrial ladder with stepping gap of 28 cm is welded to aluminum alloy (6061-T6) frame.
Frame Connection:
Spigot joint, designed through cold forming, is an integral part of vertical tube (thickness of 2.5 mm) and is used to connect the frames (Span/Ladder) to give maximum strength amid the whole tower structure.
Crimping of Brace:
The Z configure (Horizontal/Diagonal) bracing enables a quick trouble free assembly while providing firm and stable structure with all the sides crimping to resist tension and torque loads.
TIG Welding:
Produces a high quality of weld-finish with precise control of heat variables (via amperage controls), leave no slag or splatter, keeping weld and surrounding metal as clean as possible.
Scaffold Platform:
Working platform, made of water-resistant and anti-slip wood, has aluminum frames all around for the perfect fitting of toe-board. The platform is available in two kinds i.e. standard and trapdoor.
Locking Mechanism:
The wind-lock safety system is to hold the platform from accidental lift and the use of locking-pin is to prevent unintended removal of frames. The self-locking hook fits automatically onto the rungs to support more than 220 degree covered-area for a perfectly stable tower.
Tower Stabilizer:
Triangular stabilizer is designed to use at the four corners of scaffold. It can also be adjusted in a telescopic manner to form a free standing tower along rubberized anti-slip pad to empower safety against sliding off.
Castor Wheel:
Available in 15/20 cm fixed-jack (F-Wheel) or with adjustable-leg (A-Wheel) up to 30 cm and constitutes dual-pedal braking for easy operation. The wheels are also available in solid nylon material, termed as White Nylon Castor Wheels.
