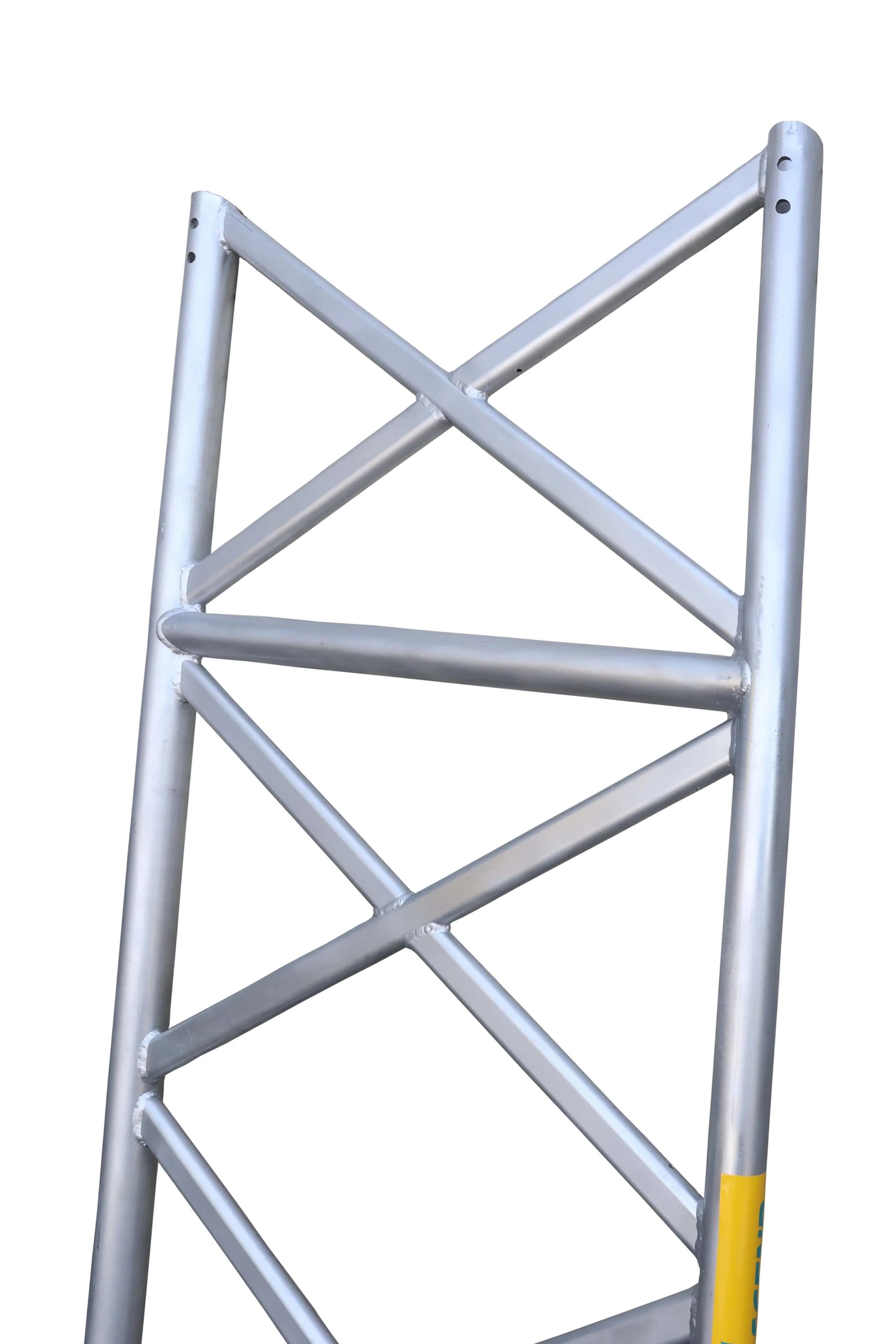

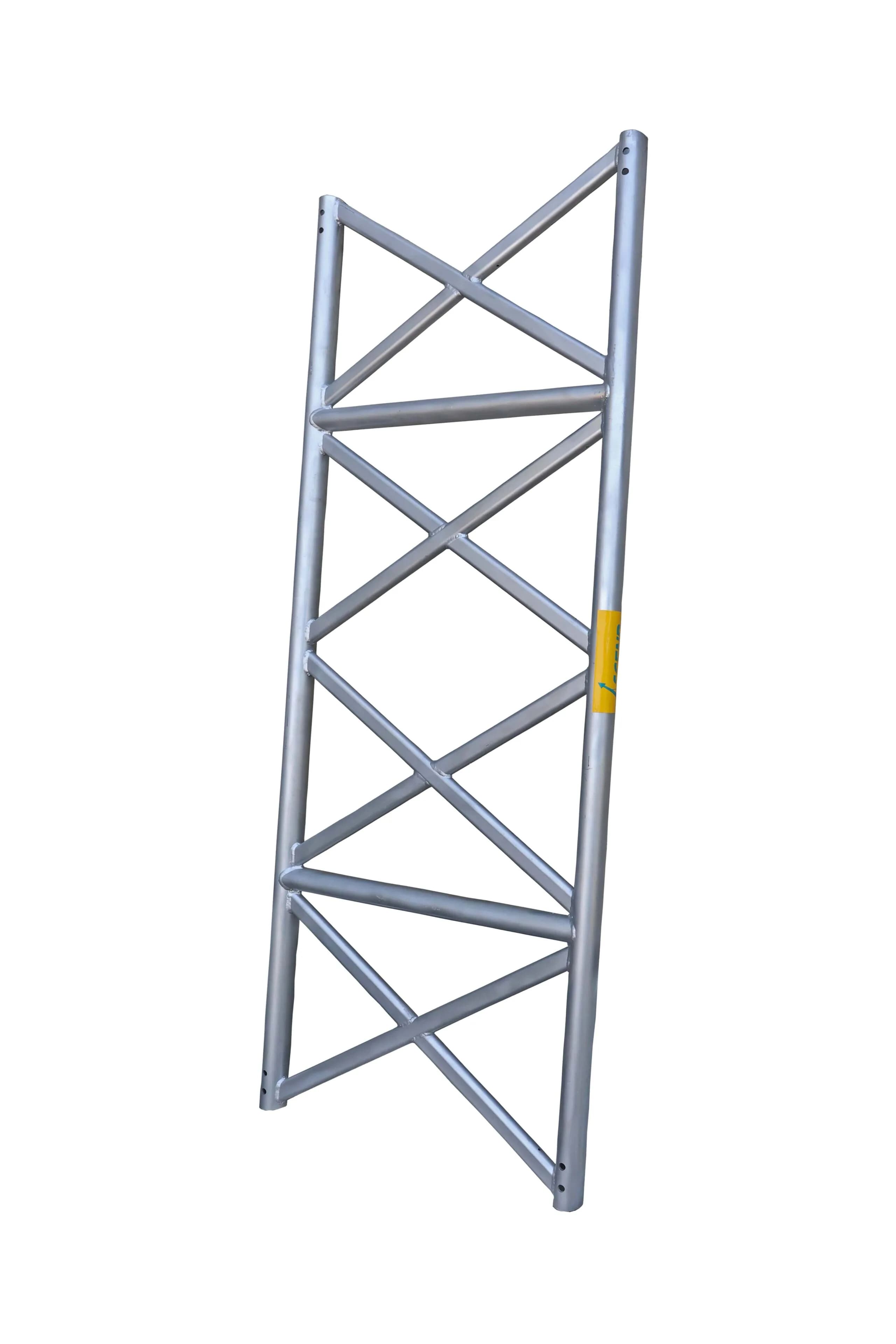

Aluminium X beam (750 mm) was originally designed to provide a light weight alternative to traditional steel unit beam .It has over twice the allowable working load in both bending moment and shear. The 750mm deep X Beam is also used as the main structural component & temporary roofing system.
ASCEND X BEAM consistently manufactured 6082 T6 aluminium that fully designed as per BS EN 8118 & EN 1999-1-1
Top, Bottom & vertical Alu profile: 48.3*4.0 mm wall Thickness
Diagonal Alu Profile: 40*21*3.5 mm
All Joints are TIG Welded (welder qualified to BS EN 9606-1-1)
X-Beam Standard Length :(2, 2, 4, 5 & 6Mtr)
Non Standard length made to order
